R Worm Servo Gearmotor &AX Servo Drives (0.85kW～6.6kW)
Characteristics features
◆ Excellent ecological design adds luster to your brand image.◆ Various Product input,output and mounting design to meet your diverse needs.
◆ The FEA design of the casting housing,which improves the running stability by 30% and effectively reduces the noise of the whole machine.
◆ High precision worm hob is used to process worm gear,which optimizes contact area,ensures lower noise and longer lifespan.
◆ Excellent material and heat treatment process improve products reliability and lifespan.
◆ High reliability and long design life can effectively reduce your use and maintenance costs.
◆ Unique modular design,international production ,faster production and delivery.
◆ Servo motor not only has a strong compact structure and high protection grade, but also has high efficiency, high overload bearing capacity and other characteristics;Its excellent radial runout quality and subtle torque fluctuation can realize high quality workpiece surface machining.
◆ Combined with boneng Agile series drive to form a powerful servo system, can achieve seamless integration, perfect coordination.
Product type
◆ Mounting mode：foot mounted, flange mounted, torque arm mounted.
◆ Output shaft: solid shaft, hollow shaft

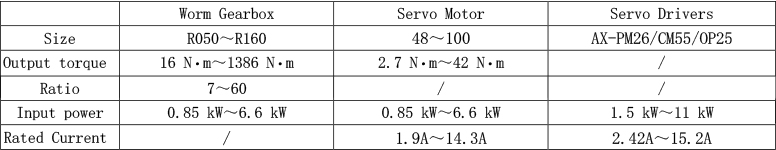

Technical data
AX Servo Drives
AX precision series servo drives are modular servo drives designed for high-performance servo applications with a unified control module, and composed of a power module adapted to different power servo motors and some optional accessories, the flexible modularization provides users with richer options for system design and application. AX precision series single-axis servo drive consists of three parts:
Operation panel (OP25) or PC debugging software BonnegDrivesoft:
operation panel or PC debugging software can provide users with convenient and quick parameter setting methods, supports Chinese character display, more simple and understandable information feedback, and advanced oscilloscope detection and diagnosis functions.
Control module (CM55):
The control module provides users with a wealth of control interfaces, input and output terminals, analog signals, and communications, and through a variety of ways to control and monitor the connected motor.
Power module (PM26):
The book-type power module has a power range from 0.75kw-132kw, supports a variety of control modules, makes motor speed adjustment simple and flexible, and includes complete drive protection functions.
Features
◆ Modular design, flexible product combination;◆ PROFINET and EtherCAT communication supported, just choose different control modules;
◆ Wide power range, covering from 0.75kW-132kW;
◆ High-precision 23-bit absolute value encoder used for high control precision;
◆ 380VAC voltage level design, eliminating additional configurations such as transformers;
◆ Fast screw-free control terminals, convenient for wiring, debugging and maintenance;
◆ Abundant IO interfaces and optional Bi-direction control terminals.
Technical data
1.Control module
2.Power module
Main application industries
◆ Chemical industry◆ Metal
◆ construction
◆ food
◆ Textile
◆ Papermaking
◆ Wash machine
