MX Three-phase AC Permanent Magnet Servo Motor & AX Servo Drives (0.28kW~103kW)

Motor Characteristics


◆ High protection level(IP66)（28-100）
◆ Excellent radial beating quality and subtle torque fluctuations
◆ High dynamic response
◆ High overload carrying capacity
◆ High efficiency(IE5)
◆ 22-bit multi-circle absolute encoder
◆ High-end permanent magnet brake,quick plug（28-100）

Motor Technical Parameters


 Shaft height（mm）  28、36、48、63、80、100、132、180
 Rated power（kW）  0.28~103
 Rated torque（N.m）  0.8~478
 Rated speed（r/min）  1500、2000、3000、4500（28-100）

AX Servo Drives


       AX precision series servo drives are modular servo drives designed for high-performance servo applications，it can be adapted to MX series servo motor to complete accurate servo control, and can also be adapted to asynchronous motor to complete asynchronous servo control.

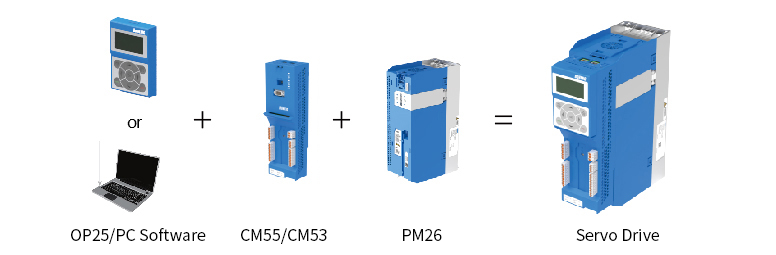

  1.        AX series servo driver consists of three parts:

Servo Drive Features


◆ PROFINET and EtherCAT communication supported, just choose different control modules;
◆ PROFINET servo supports RT and IRT applications;
◆ High-precision 22-bit absolute value encoder used for high control precision;
◆ 380VAC voltage level design, eliminating additional configurations such as transformers;
◆ Fast screw-free control terminals, convenient for wiring, debugging and maintenance;
◆ Abundant IO interfaces and optional Bi-direction control terminals.

Servo Drive Technical data



 Control module  AX-CM55-PA-PE(Connecting PROFINET communication devices)
 AX-CM55-EA-PE(Connecting EtherCAT communication devices)
 AX-CM53-PA-PE(Connecting PROFINET communication devices)
 Power module input voltage  380~480V 3AC±10%
 Power moduole input
 frequency		  47~63Hz
 Overload capacity  Can bear 3 times of overload for 3s when 30s periodic impact load
 applied.
 Protection level  IP20

Main application industries


Machine tool ● Robots ● Printing machines ● Packaging machines ●
Textile machinery ● Automation equipment
